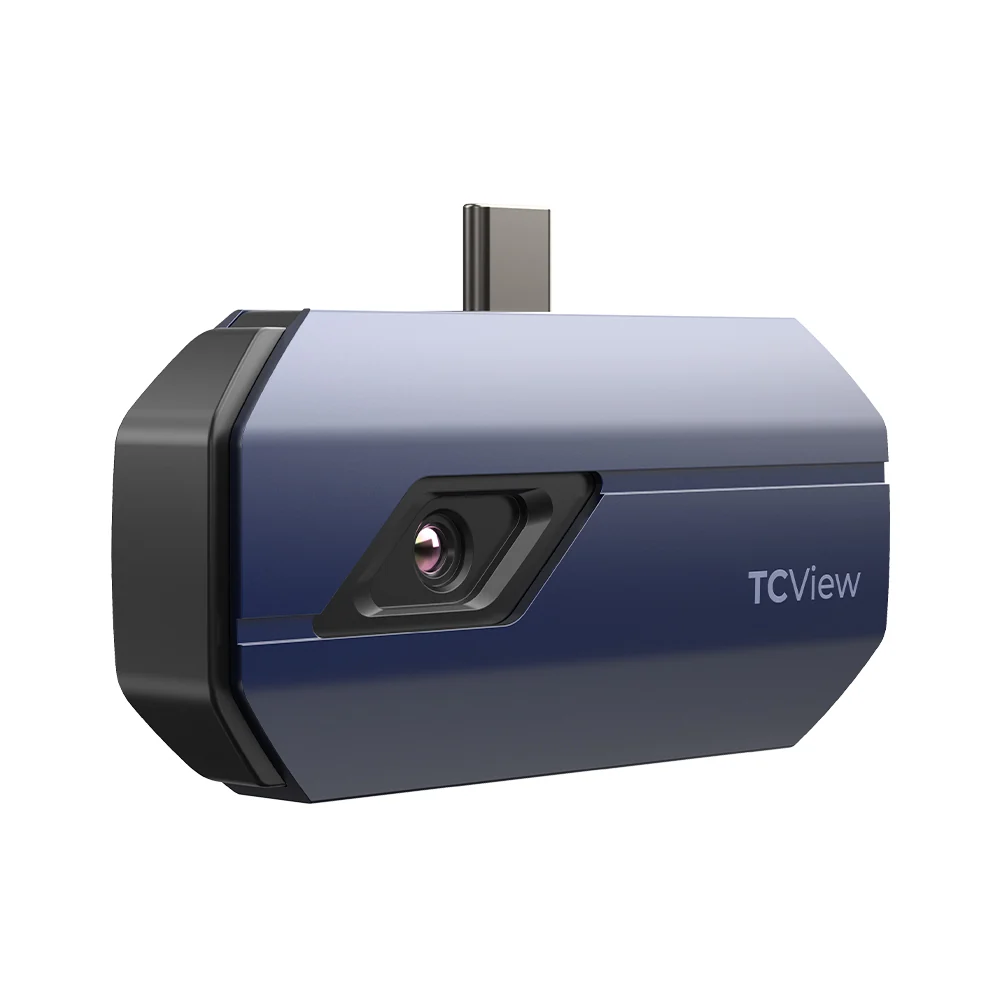

TC001 (Android Devices) — Professional Overview
TOPDON’s TC001 is a portable camera that turns your Android smartphone/tablet or Windows laptop into a powerful thermal imager. Simply download the accompanying app, slot the TC001 in your device’s USB-C port, and unleas
Features and specifications
TOPDON’s TC001 is a portable camera that turns your Android smartphone/tablet or Windows laptop into a powerful thermal imager. Simply download the accompanying app, slot the TC001 in your device’s USB-C port, and unleash thermal technology that formally only belonged to special forces.
Perfect for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to protect crops and livestock.
FEATURES
Superior Image Quality
Equipped with an ultra-high IR camera resolution of 256x192 pixels, the TC001 can produce a thermal image with unmatched clarity.
The TC001 is especially suitable for objects where surface temperature is hardly distinguishable, such as circuit boards and other electronics.

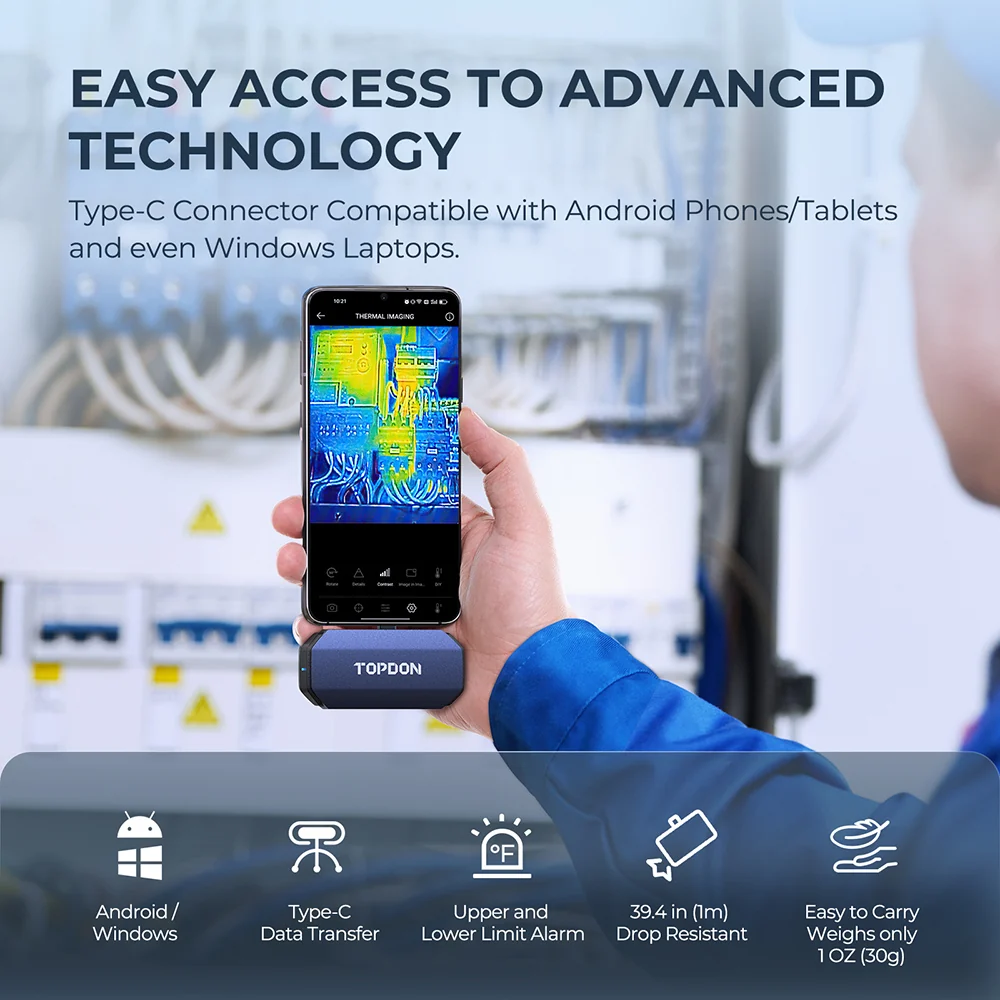

Built For Compatibility & Mobility
- The TC001 is compatible with Android phone/tablet and features a downloadable app to turn a regular smartphone into a high-tech thermal camera. Windows tablet functionality is also supported, with the TCView app available to download from the TOPDDON official website.
- Designed with mobility in mind, the TC001 can easily pair with most Android smartphones; the device only weighs 30g, and measures 71x42x14mm; further adding to the TC001’s mobility.
Optimized Temperature Range And Accuracy
- With a wide temperature range of -4℉ to 1022℉(-20℃ to 550℃) , the camera can perform temperature readings for all kinds of objects.
- The TC001 infrared thermal camera can perform temperature detection within ±3.6ºF (2ºC) or 2% of max temperature.
- It can also display surface temperature variations as little as 0.1ºC, allowing users to detect temperature with extreme precision.
Discover More With The Thermal Imaging App

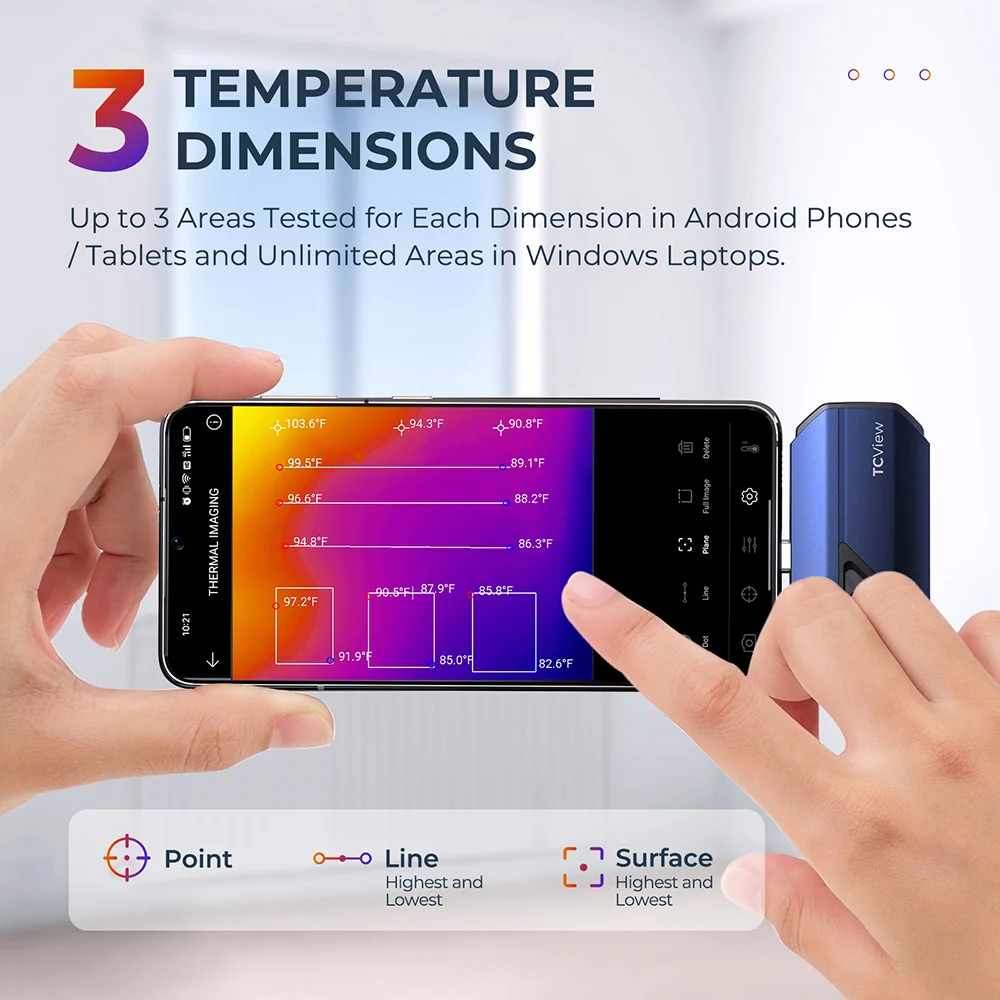

- Users can download the app to view temperature recording data at any time and view or create real-time temperature graphs.

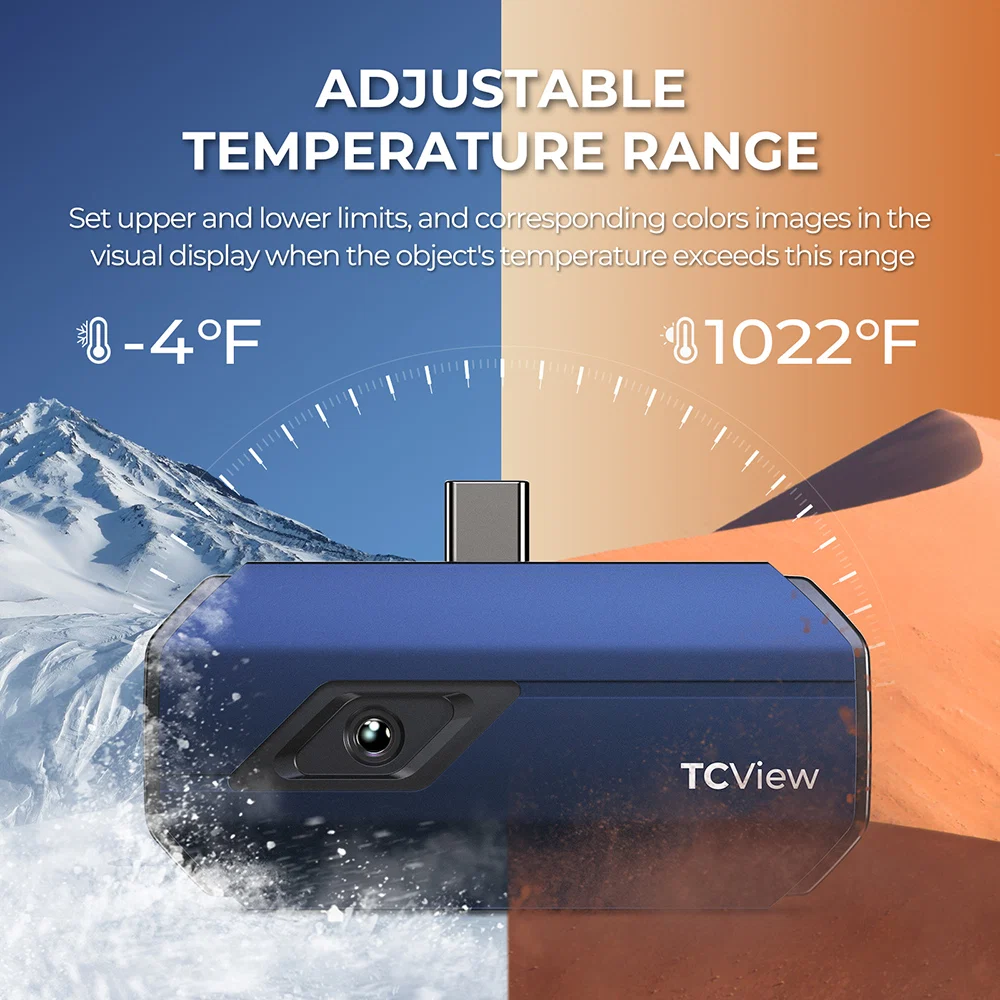

- Featuring a DIY temperature range ability, the TOPDON infrared thermal camera allows users to set upper and lower limits, and corresponding colors.

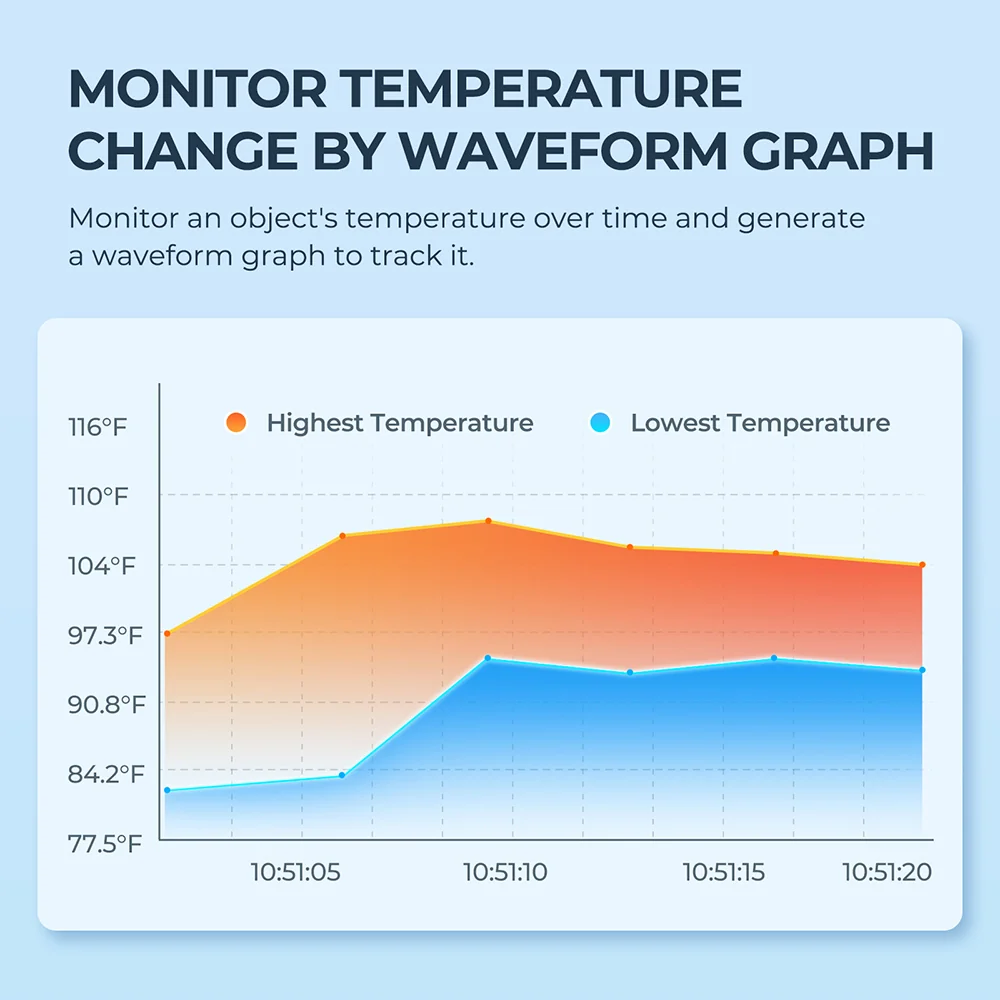

Monitor Temperature Change By Waveform Graph
The TC001 can take continuous measurements of a scene, storing the data in the App. This data can provide the high, low, and average temperatures of objects in the scene over a set period of time and generate a waveform graph.
This waveform graph makes thermal reading observation much clearer, and allows for easier thermal temperature analysis.
Low Power Consumption, Longer Lasting
- Compared to traditional infrared cameras, the TOPDON TC001 infrared thermal camera attaches to a smartphone or a tablet’s input and is powered by the device, eliminating the fear of running out of power outside with low power consumption of only 0.35W.
Unique Image Enhancement Technology

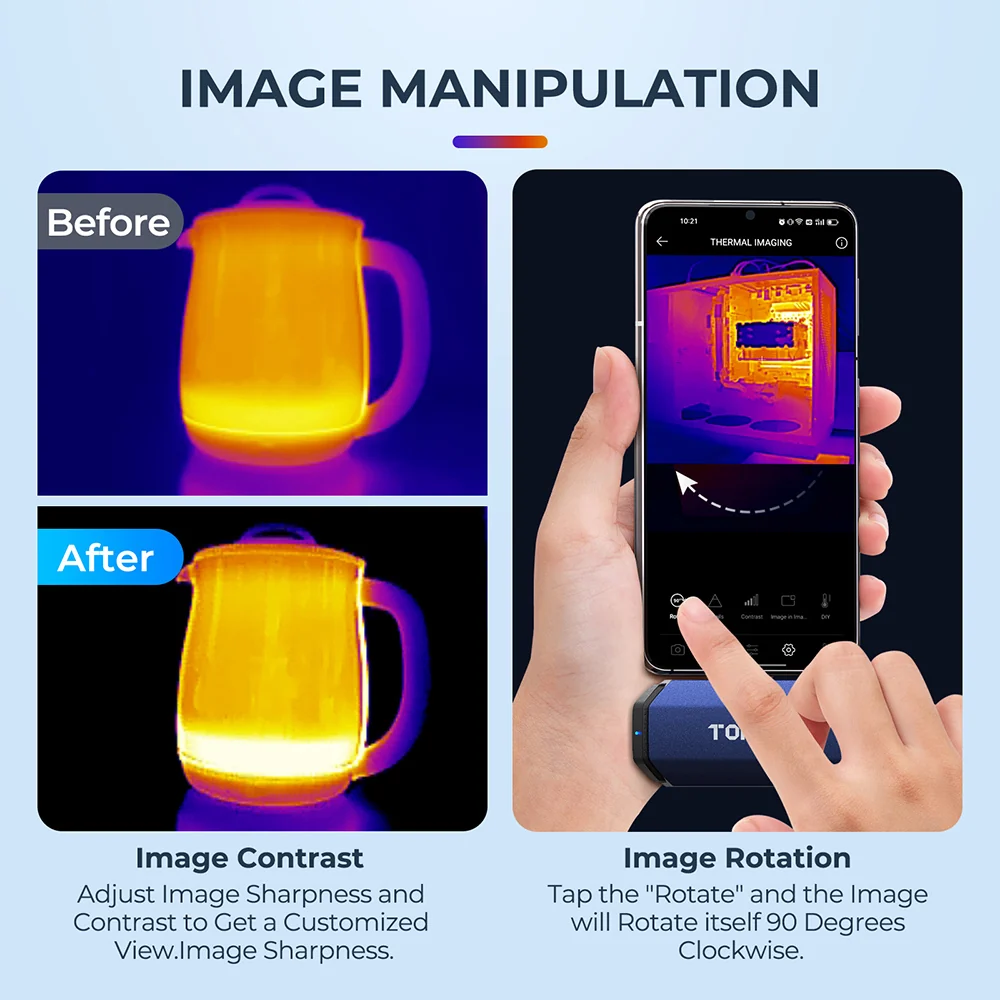

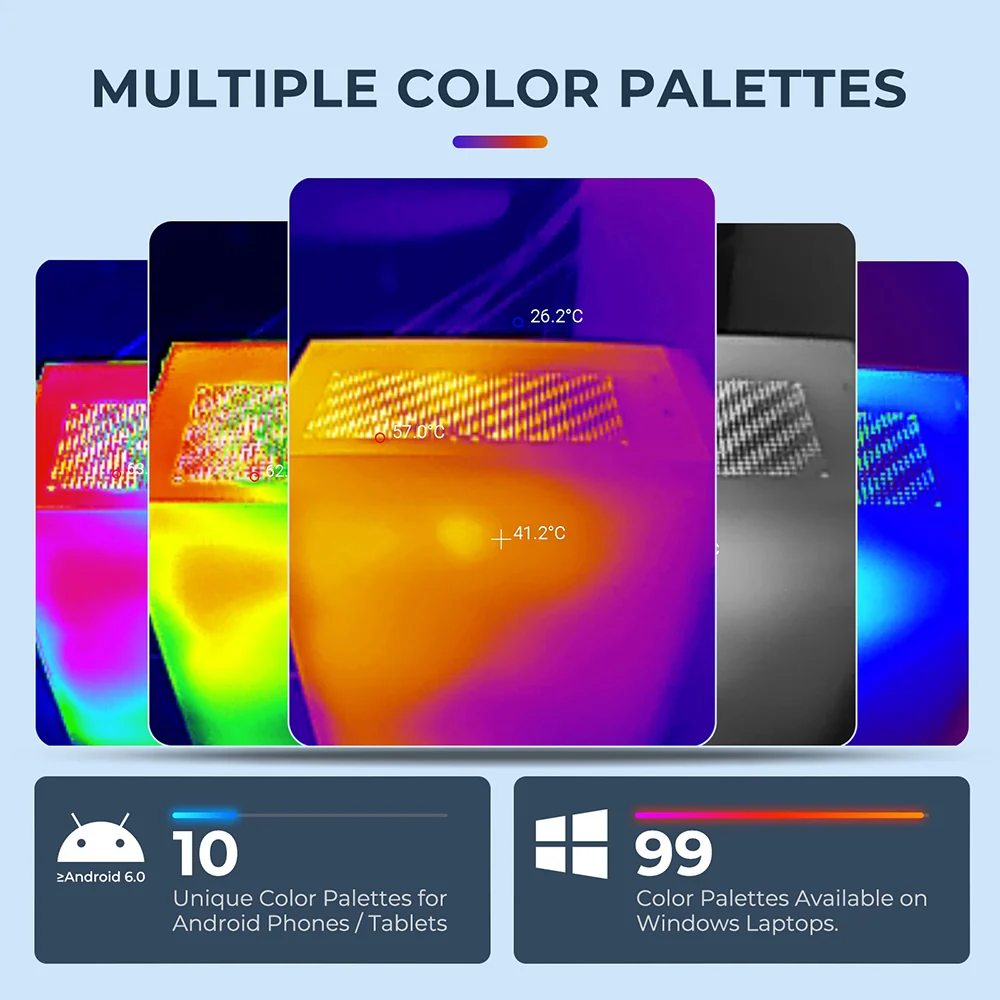

- Includes 10 different color palettes, sharpness and contrast adjustment, picture-in-picture and many other functions. Image enhancement technology makes the field of view clearer and more detailed, and enhances the target recognition function.
More Scenarios For Application
- The TC001 is plug and play and requires no registration if you only read the temperature. This tool is perfect for jobs such as security purpose, insulation inspection, cylinder inspections, water leak inspection, and HVAC system inspection.
TC001 is not compatible with all styles of phone cases or tablet cases, the included extension cable may need to be used.
SPECS
- Spectral Range: 8~14μm
- Resolution: 256×192 Pixels
- Pixel Size: 12μm
- NETD: ＜40mK at 25°C, F#1.0, 25Hz
- Frame Rate: 25Hz
- Object Temperature Range: -20~150°C (-4~302°F), 150°C~550°C (302~1022°F)
- Accuracy: Temperature Accuracy: ±3.6ºF(2ºC)
Temperature Resolution: down to 0.1ºC (0.1ºF)
Note: The potential thermal error will be less than ±1.8°F (1ºC) when the target temperature is below 212°F (100ºC).
- Weight: 30g
- Dimension: 71*42*14mm (2.80*1.65*0.55 inch)
- Cable Length: 50cm (19.69 inch)
- Operating Systems: Compatible with Android Phone / Tablet & Windows Laptops

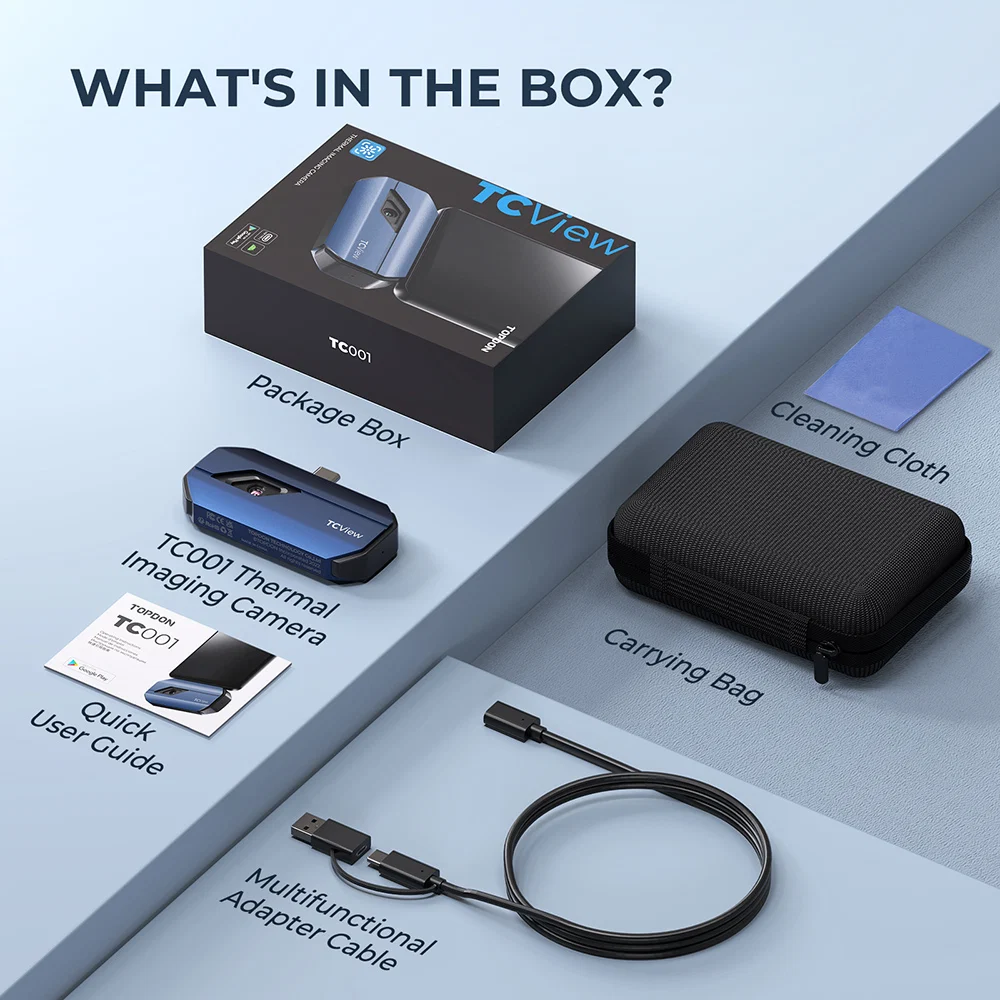

PACKING LIST
- TC001 Thermal Imaging Camera
- Carrying Case
- Multifunctional Adapter Cable
- Package Box
- Quick User Guide
- Cleaning Cloth
Download
Requires Android 8.0 or above
Requires Windows 7, Windows 10 or Windows 11 (64-bit)
WARRANTY
- 1 Year
